Internet of Things Asset Tracking

About BlueHound

"Where Is My Order?"

Until now, "Where is my order?" has been the oldest question in the supply chain. With Bluehound Asset Trackers, you never have to ask that question again. The Internet of Things device enables real-time visibility into your operations.

The BlueHound Asset Tracker is an Internet of Things (IoT) device that tracks the status and travel path of assets. Tracking is available for both on the road shipments and pallets within a warehouse. With sensor enabled technology, BlueHound trackers communicate through GPS, cellular connection, and Bluetooth technology. Enabling data and insights to be accessed through a  dedicated web portal. This allows users to view the status and location of assets with real time reporting on any device that has access to the internet. BlueHound trackers provide insights that allow logistic inefficiencies to be identified or fixed as they occur.

Key Functionality

on-the-road-tracking-icon

On-the-Road Tracking

Track moving assets at all times, aiding in theft detection and recovery

indoor-positioning-icon

Indoor Positioning

Smoothly transition from outdoor tracking to warehouse positioning

tempurature-monitoring-icon

Temperature Monitoring

Detect if temperatures have exceeded the suggested storage range

imapct-dectection-icon

Impact Detection

Discover if assets have been exposed to excessive shock, impact or drops



Two Asset Tracking Options: Portable or Embedded

tracker



Portable

The portable BlueHound asset tracker was made with flexibility in mind. The compact size allows for easy attachment and its water resistant exterior provides protection from harsh elements. At an additional convenience BlueHound trackers are rechargeable and offer low battery alerts.

Attach portable trackers to a number of assets including pallets, totes, fork trucks, semi-trucks, trailers, tool kits, etc. Standard mounts include brackets, magnets, plastic pouches, and heavy-duty zip ties. Custom attachments are available upon request.

Portable BlueHound trackers allow companies to easily end tracking of one asset and reattach to begin tracking another asset.


Technical Features:

Dimensions: 4.5" x 4" x 2.5"
Weight: 14 oz.
Batteries: 4 AA NiMH
Battery Life: Rechargeable - Once per month
Charger Type: Barrel Port, 5.5 mm x 2.5mm barrel male plus

shipment-tracker

embedded-trackerb8837f902afc682eabcbff0000f3d94d



Embedded

If a streamline solution is what your company needs, Bastian Solutions has engineered an innovative new product, a trackable composite pallet

The ROGUE Composite Pallet offers the best in class strength, reusability, lifetime cost, and now the ability to be tracked.

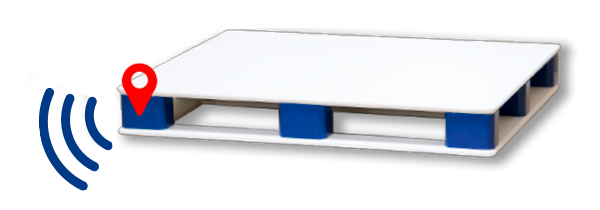

Inside the legs of the pallet is an Internet of Things enabled tracker. This solution provides excellent visibility for companies looking to track assets within a closed loop operation.

Embedded BlueHound trackers are water resistant and offer a two year battery life.


Technical Features:

Dimensions: 4.5" x 4" x 4"
Weight: 2 lbs
Batteries: 4 D-Cell Alkaline Batteries
Battery Life: 2 Years - Non-Rechargeable
Charger Type: N/A

pallet

Bluehound Web Portal

monitor-1
monitor-2

Tracking Data Analytics

In addition to viewing the status and location of valuable assets, BlueHound’s web portal provides analytics for both indoor and outdoor positioning to improve decision making. By providing users with access to the tracking history, one can more easily identify patterns of use, reduce costs, tailor forecasting, and improve customer service.

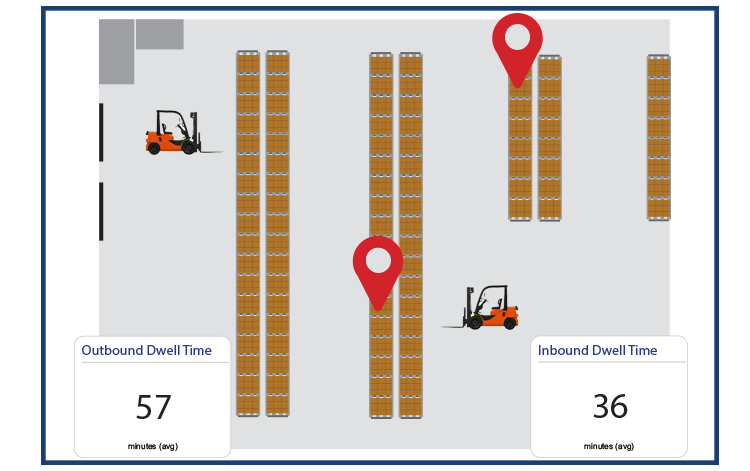

Warehouse Analyticsindoor-positioning

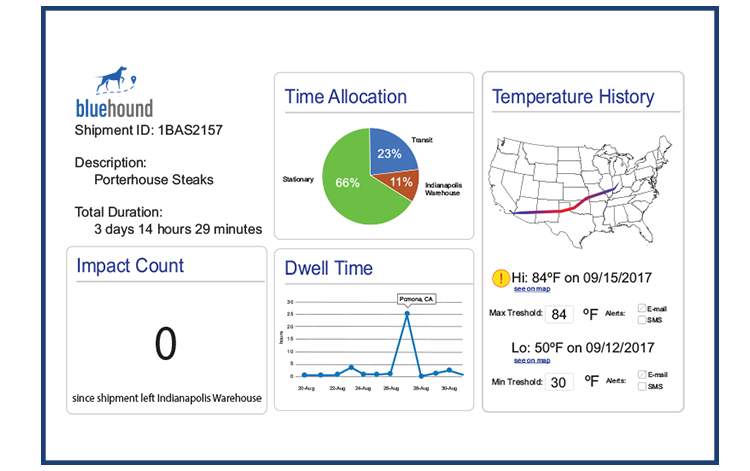

On-the-Road Analyticsanalytics

BlueHound Brochure



Download the complete guide to BlueHound Asset Tracker



Interested in a Pilot Program?

Interested in trying the BlueHound pallet tracker in a pilot program? Bastian Solutions provides an opportunity for businesses to experience first-hand the added value of end-to-end visibility, the opportunities for improved decision making, and the asset tracking system’s ease of use.

Please contact us today to learn more about how your company can begin an asset tracking Pilot Program with Bastian Solutions.


Made in Conjunction with the Rogue: Composite Pallet

rogue-pallet
Rackable Load Capacity 2,800 lbs
Dynamic Load Capacity 5,000 lbs
Static Load Capacity 8,500 lbs
Dimensions 48" x 40"x 5.56"
Weight 70 lbs
Window Entry 48" side
Window Entry 40" side
14.7"w x 4.2"h
13.7"w x 4.2"h



Rackable  •  Four Way Entry  •  GMA Requirements •  ISTM Standard
