Robotic Machine Trending & Deburring Case Study

Robotic Machine Tending & Deburring

This customer's facility had 3 existing CNC machines and required an efficient way to introduce a fourth. Bastian Solutions developed a system using robotics and custom designed conveyor to service all four machines and deburr each part, greatly increasing quality, consistency, operational efficiency and throughput.

Ready to find your solution?

Machine Tending & Deburring

Key Technologies

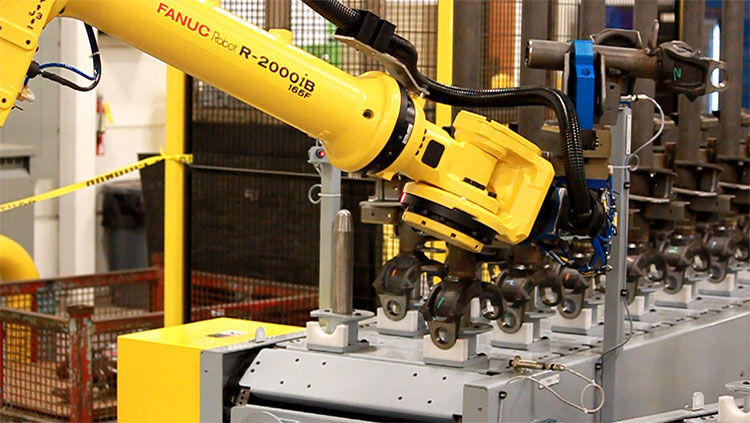

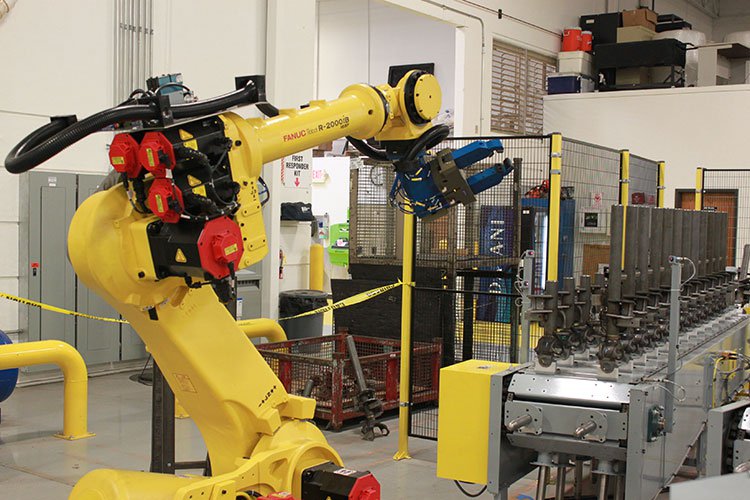

  • FANUC R-2000iB 165kg Machine Tending Robot with R30iB controller
  • Integrated robotic cable management system
  • FANUC Soft Float option allows compliance between robot and machine tool fixtures while loading parts
  • Allen Bradley 1768-L4xS Compact GuardLogix® Controller used to control cell and cell safety

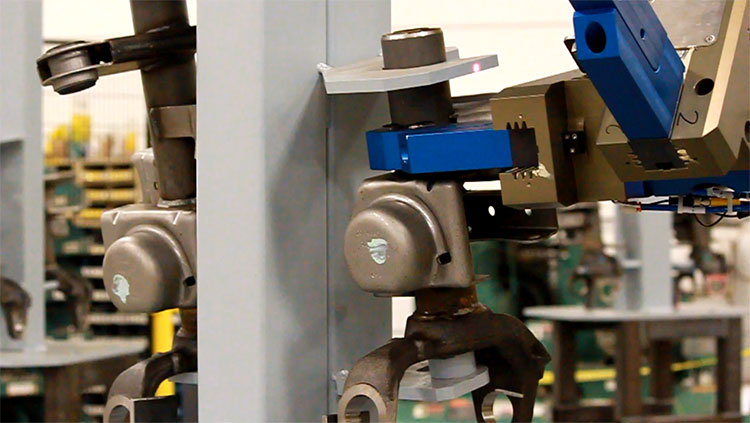

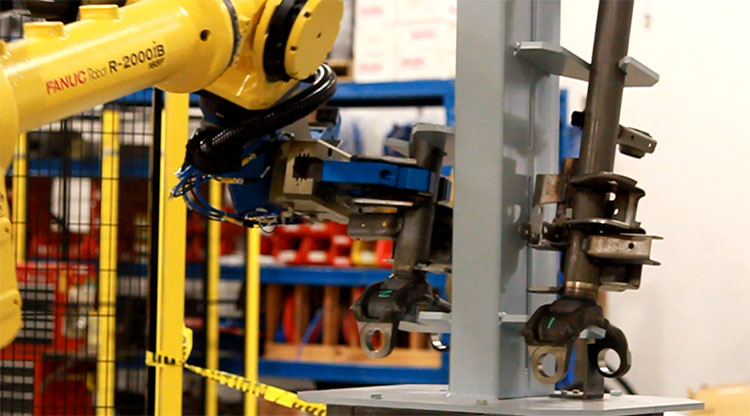

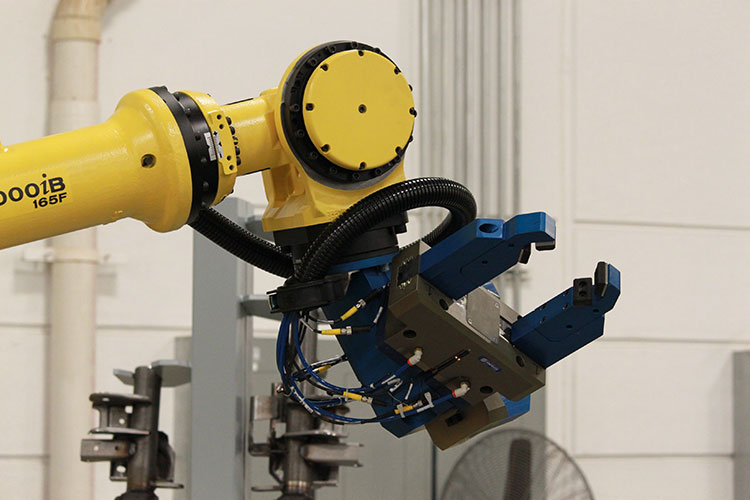

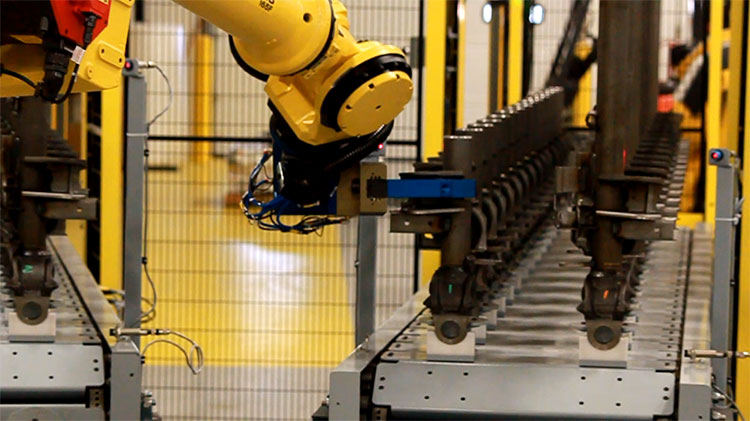

  • Custom Part Gripping End of Arm Tool with 2 parallel grippers used to handle 30 pound parts

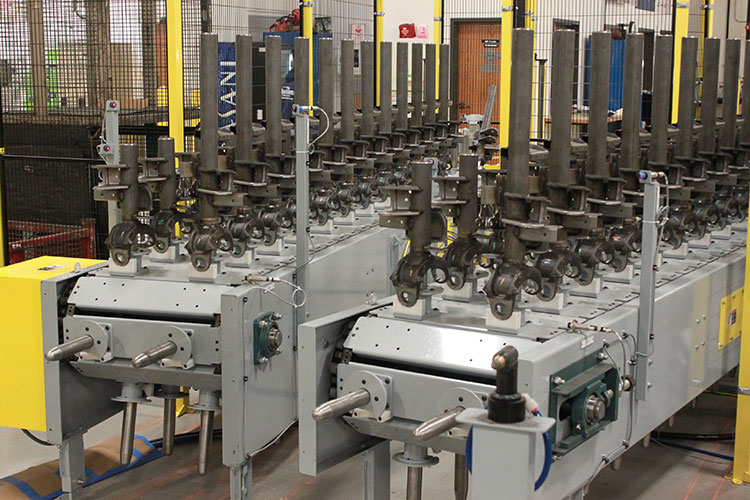

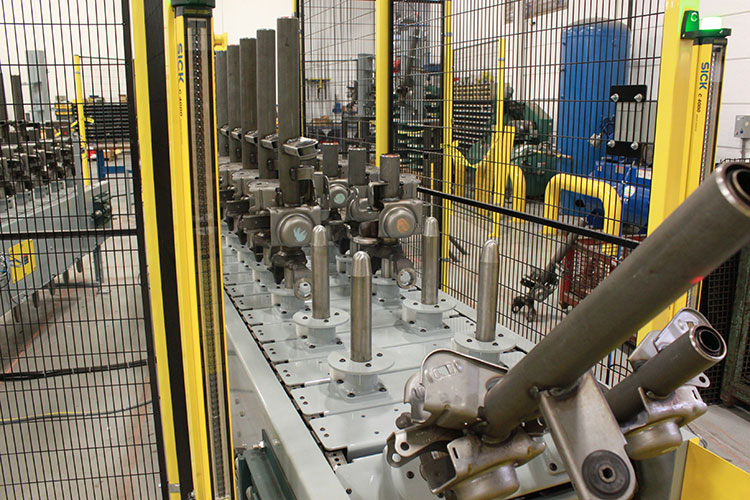

  • Custom Bastian Solutions Slat Conveyor used to feed raw parts to robot and take finished parts from cell

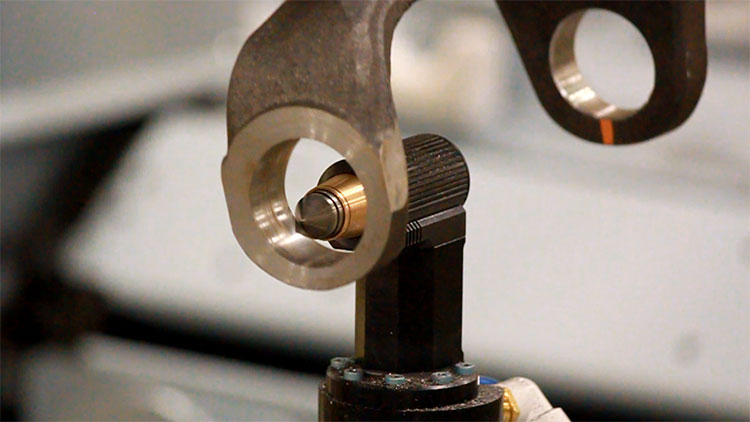

  • Robotic verification of part machining, followed by deburring of machined surfaces utilizing axially compliant fixed-mount deburring tool
  • System interfaces with multiple CNC machine manufacturers


  • Machine tending robot was added to service all four CNC machines and greatly increased efficiency
  • CNC machine utilization increased by at least 25%
  • Daily throughput was increased by nearly 350 parts per day and more than 80,000 parts per year
  • Improved operator ergonomics
  • Accumulation allows for 20 minutes of unattended run time
