Pivot Wheel Divert

Gain Flexibility with a Pivot Wheel Divert

The pivot wheel divert is a cost competitive solution for sorting cases. These are a great solution for conveyors with a single divert or a large distance between diverts. The pivot wheel divert rollers are powered by 48V DC motors. The PWDs can handle rates up to 60 cases per minute.


Ready to find your solution?

Pivot Wheel Divert Benefits

  • Perfect for case sortation onto angled spurs
  • Great for small cases (down to 6”x 9”)
  • Low-maintenance, very robust
  • All electric (non-pneumatic)
  • Maintains product orientation
  • Quiet operation
  • Cost-effective

Pivot Wheel Divert

Pivot Wheel Divert Specifications

Standard Conveyor Overall Width: 18” | 24” | 30” | 36”
Divert Angle: 30 degrees
Motors:Two 48 volt DC Servo Motors
Power: All electric (non-pneumatic)
Speed: Up to 350 feet per minute
Rate: Up to 60 cartons per minute
Product Load Capacity: Max 75lb
Minimum Case Size: 6” x 9”
Wheel Material: Polyurethane
Conveyor Compatibility: RZPDC & RLVDC


Pivot Wheel Divert

Resources

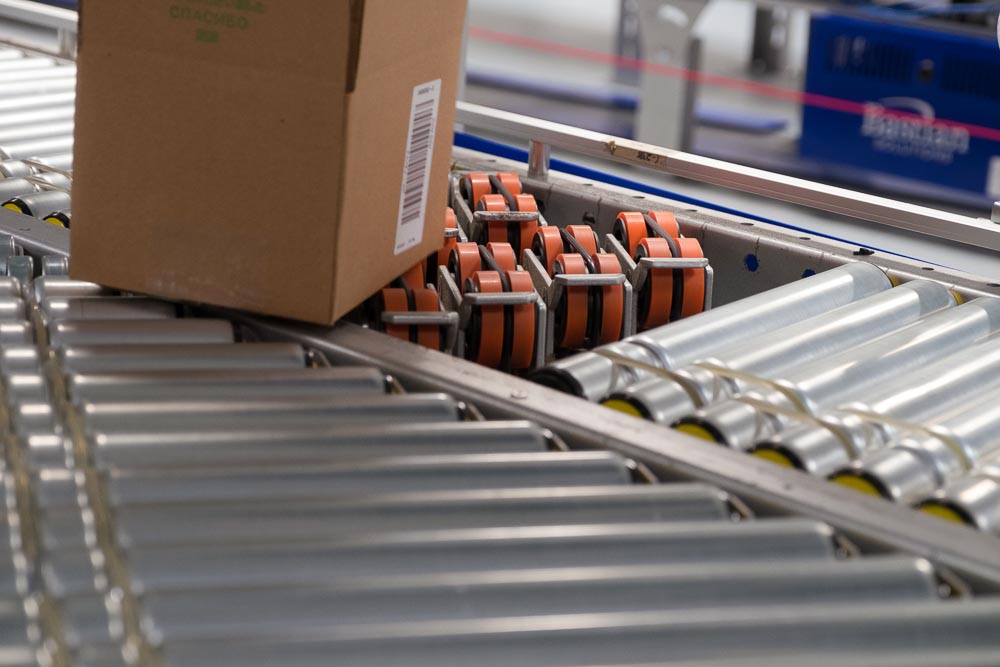

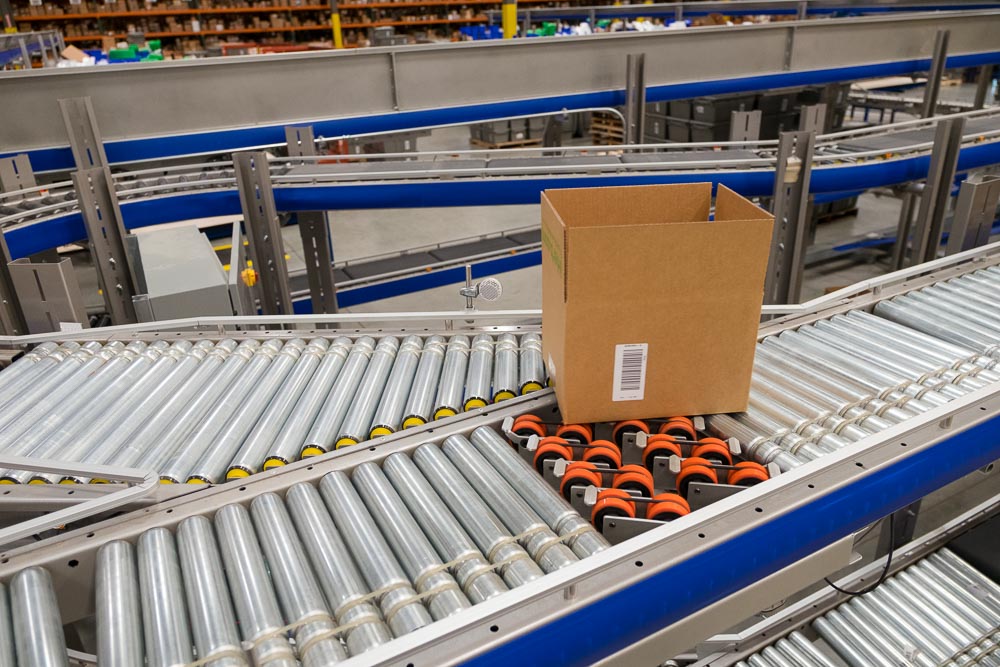

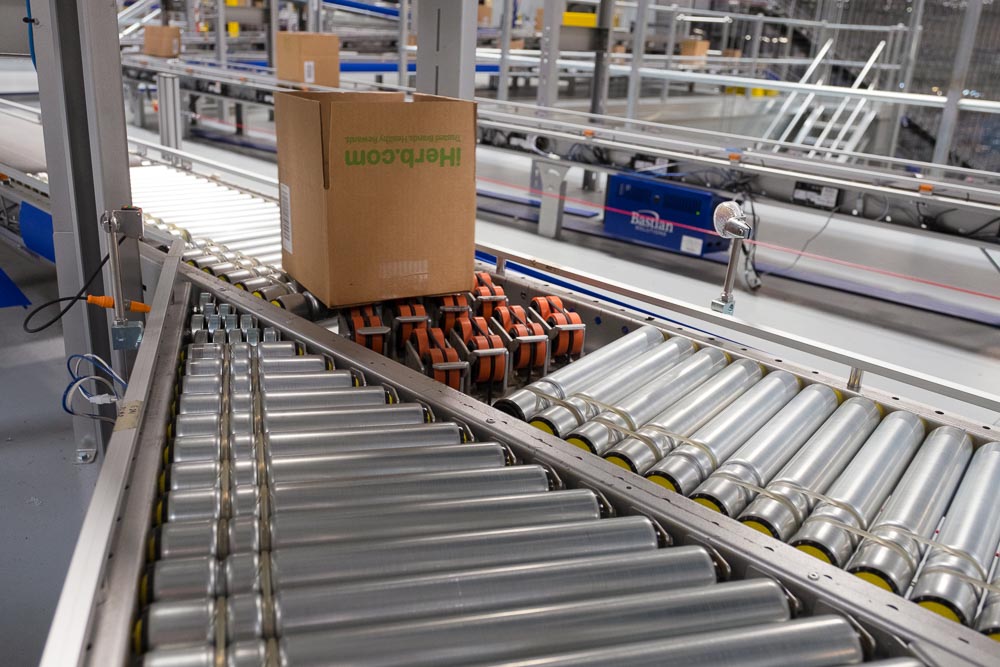

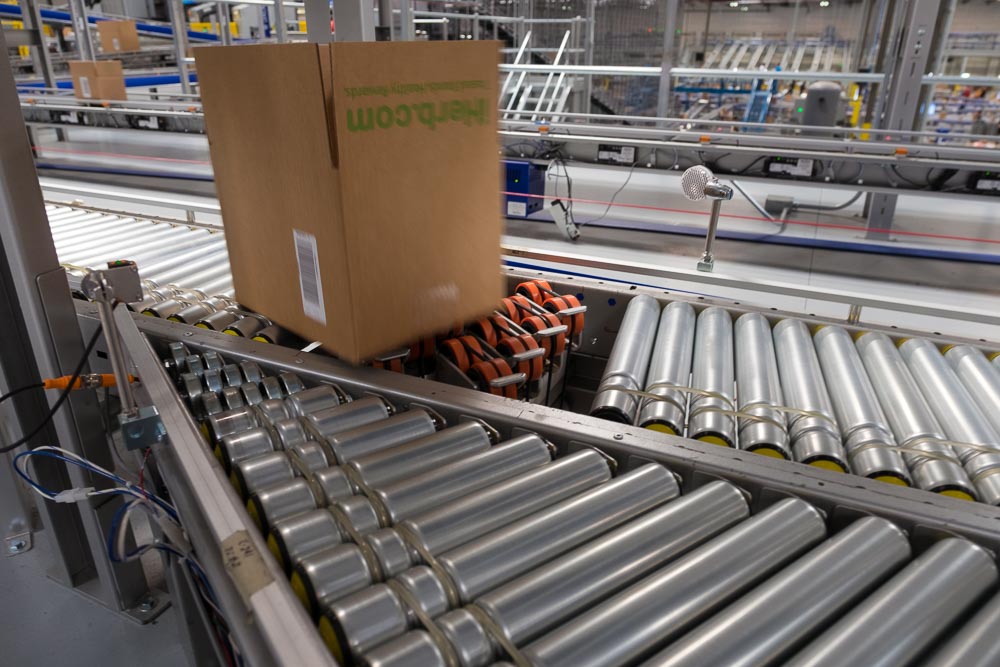

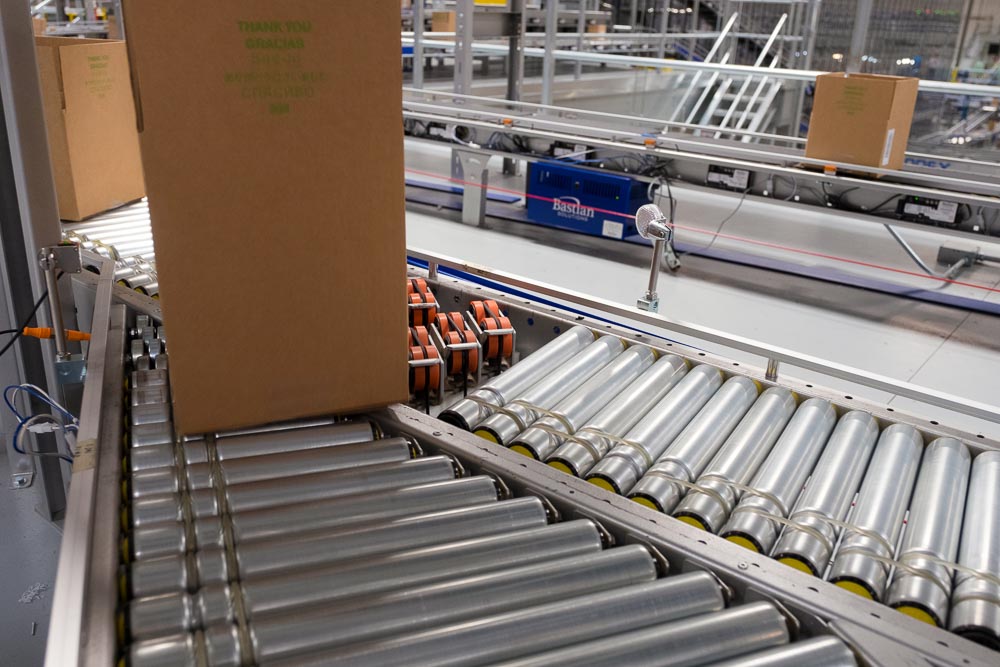

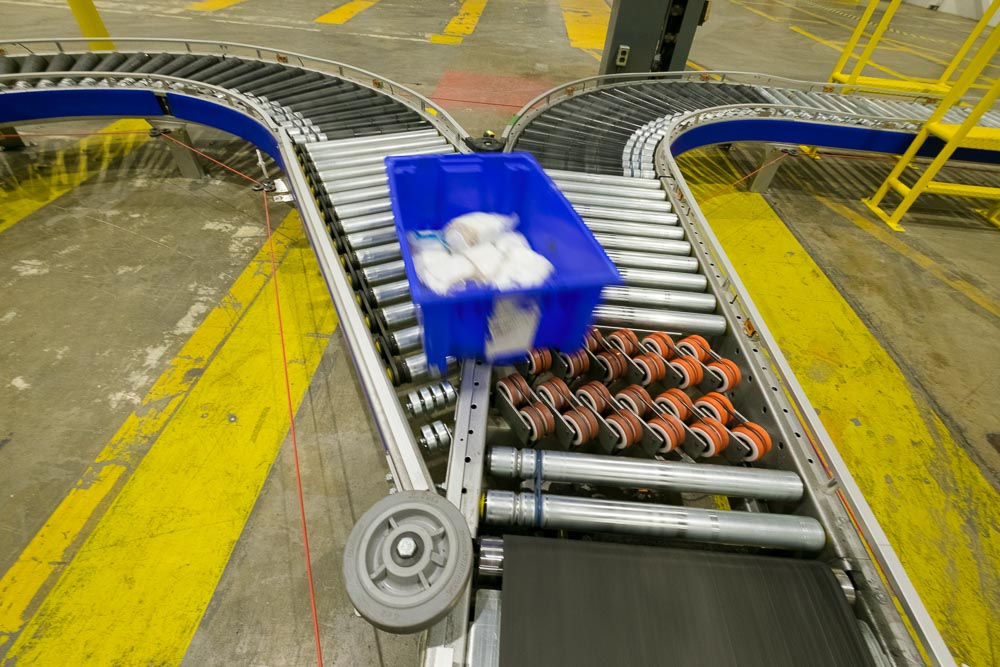

Photos
