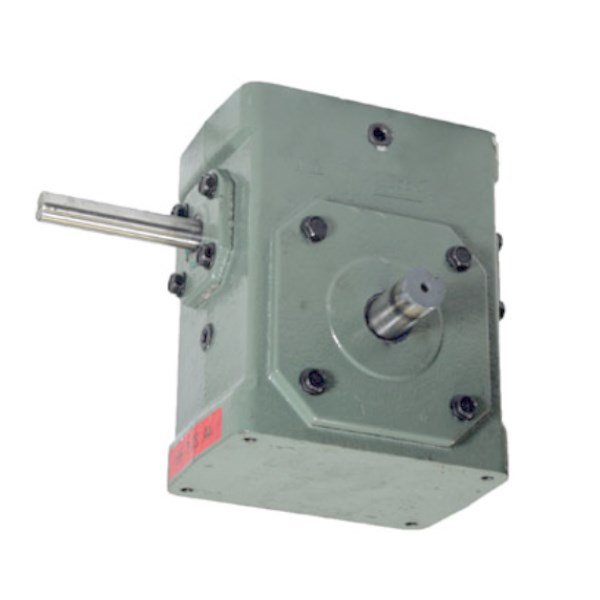

4A Speed Reducer Assembly – LH, 83:1, TBD
- Speed Reducer Assembly
- Left-hand orientation
- 83:1 gear ratio
- For use with .5 hp to 1 hp electric motors
- Input shaft is connected to the electric motor with use of a v-belt and sheaves
- Input shaft is 3-21/32” long
- Output shaft is 2-31/32” long
- For use with timing belt sproket off output shaft
Most Hytrol conveyor drives are supplied with a speed reducer, also known as a gear reducer or gearbox.

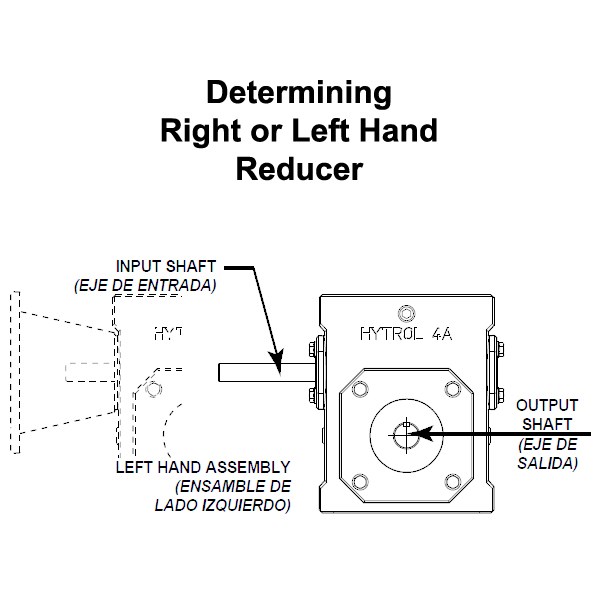

To determine a right hand or left hand Hytrol reducer, look into the output shaft with the input shaft on the high side. If the input is on the right side, it is a right-hand assembly. If it is on the left, it is a left-hand assembly. See documentation.
The Hytrol Speed Reducer, if properly used, should require little maintenance except for scheduled lubrication See documentation.
