M10 Tug AV | Autonomous Vehicles



Flexible, Space-Saving Transport

The M10 Tug AV (autonomous vehicle) is a dependable, flexible and cost-effective way to automate and optimize your manufacturing and assembly line processes. This industrial AV safely and reliably transports parts and products where they're needed, reducing product and facility damage and freeing up labor for more valuable tasks. Natural features navigation with LiDAR eliminates the need for additional infrastructure and allows routes and missions to be easily changed on the fly. Category 3 safety ratings ensure safe operation around pedestrian and forklift traffic.



Ready to find your solution?

How It Works

The M10 Tug AV is a low-profile tugger that transports casterized carts along programmed routes to designated stops, pick-ups, and drop off points. With a category 3 safety-rating and bidirectional safety scanning, this driverless vehicle can carefully navigate among pedestrian and forklift traffic without hitting obstacles.

The M10 Tug AV’s built-in LiDAR scanners identify existing features in the environment and match them to a virtual map, allowing it to determine its location and follow its programmed path. Designed with bidirectional travel and a significantly smaller turn radius than other tug AV options in the market, the M10 can adeptly navigate around existing infrastructure and in tight spaces.

Hitching to a cart is as easy as driving to the programmed pickup location, driving underneath the cart and raising its tow pin. Multiple routes and missions can be programmed for the day or changed on the fly by an operator at a computer using the provided software. When connected to WES software, missions can be automatically assigned and changed as needed. If your facility layout changes, routes, missions, and stops are all easily changed through the provided software.

Bastian Solutions’ integrated AVs (autonomous vehicles) utilize our proprietary middleware solution to seamlessly connect vehicles from various manufacturers to customers’ enterprise systems. With this pre-packaged software stack, users can orchestrate complex, multi-fleet AV systems, improving interoperability, productivity and adaptability to future operational needs.

Applications

This industrial AV can automate several processes, including:

  • Pallet building and transportation
  • Assembly line conveyance
  • Pick and place at pickup and delivery stations
  • Lineside deliveries

Benefits

  • Fast installation without the need for costly navigation infrastructure
  • Flexible routes that can be changed on the fly from a computer
  • Reduces damage to products, facility and equipment
  • Consistent traction on slightly uneven floors through drive suspension system
  • Increases employee safety
  • Round-the-clock dependable performance
  • Tows under products allowing 360-degree access

Specifications

  • Weight Capacity: Up to 1,000 kg. / 2,200 lbs.
  • Drawbar (Maximum): 42 LBF
  • Electrical System: 24-Volt
  • Guidance Method: Natural features navigation via 2D LIDAR
  • Drive Type: DC brushless motors
  • Steering Method: Tricycle with differential traction wheels
  • Travel Instruction Method: Feature map with virtual path planning and devices

Bastian Solutions Autonomous & Automated Vehicles

ML2-warehouse-AMR-autonomous-vehicle-mobile-robot-blueAlong with all the brands we integrate, we also design, engineer and manufacture best-in-class automated & autonomous vehicles to help our industry leading customers exceed their system’s throughput goals while reducing operational costs.

Designed and engineered with current manufacturing and warehouse applications in mind, the Bastian Solutions’ AV product line introduces a dependable and flexible alternative to conventional material payload transport methods.


Learn more about Bastian Solutions' Autonomous & Automated Vehicles  >



Learn More

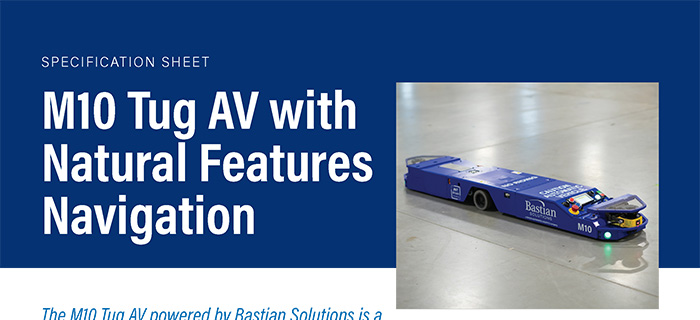

20230208-M10-Tug-Spec-Sheet-1-card-link-thumbnail

M10 Tug AV Product Overview

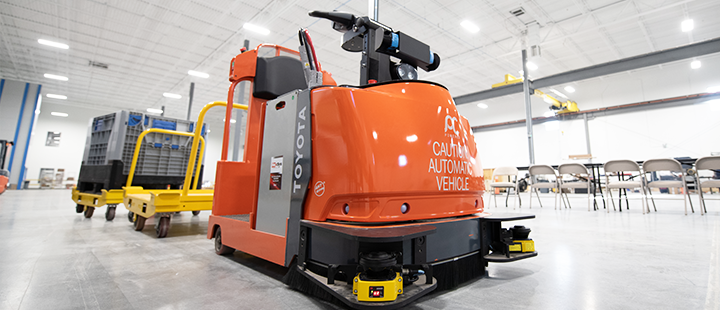

Toyota-AGV
